Personnel Deposit Lockers

A temporary storage solution where there are large numbers of users needing short term storage.

These intelligent employee lockers are designed to accommodate flexible use, whether it’s temporary or permanent. These Personnel Deposit Lockers can be used in a range of applications, they can be used as office lockers, industrial staff lockers, school lockers, or just normal Personnel Deposit Lockers. Charging facilities can be built into the system so users can re-charge a laptop, phone or other personal possessions.

These lockers can be networked in the same way as other traka products or can be offered as a simple standalone solution for temporary storage

General features

  • Range of 6 system stack types and 31 compartment size options available
  • Assets are readily available 24/7 to authorized users only
  • Full audit trail of users and equipment transactions
  • 7” capacitive touch screen for accurate input
  • Easy access via a wide range of identification methods

Standalone features

  • Operates entirely independently of your IT system with no network, PC or external connection required
  • USB port for import/export of reports via flash drive
  • Automatic data back up to removable SD card

Networked features

  • Full network capability and management through TrakaWEB
  • Centralized administration and reporting
  • Browser based allowing for remote administration
  • Integrate with existing access control and third-party systems to provide centralized control and visibility

Optional features

  • Different compartment sizes can be combined to create a solution tailored to your needs
  • Locker stack can be combined to form a system with up to 100 compartments
  • Compartments available as simple storage, with integrated charging

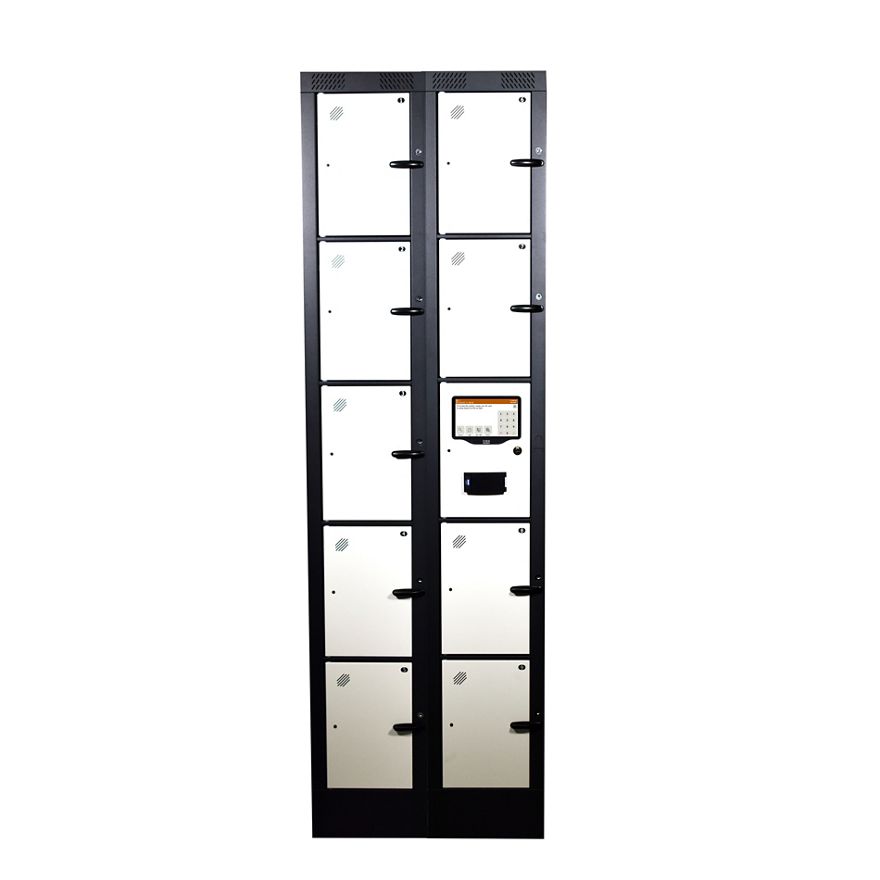

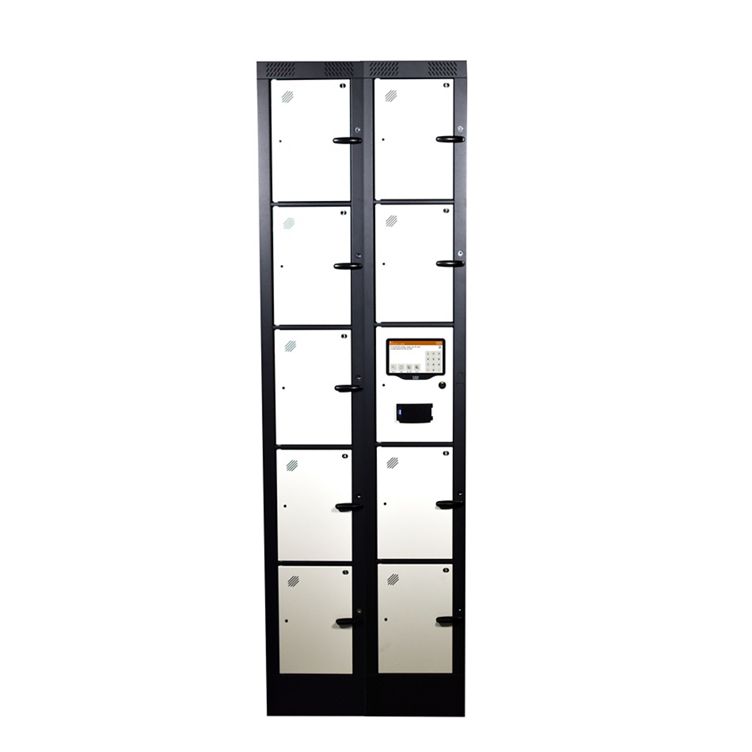

Traka 9-way personell locker provides temporary storage and charging for valuables
Traka 9-way personell locker provides temporary storage and charging for valuables

1 of 2

Material data
Cabinet material:
Zintec steel
Color options: Standard frames are RAL7021 (black grey) and doors RAL9003 (signal white). Other RAL colors are available upon request
Door material options: Solid metal or clear polycarbonate viewing window

Electrical data
Power supply:
Input: 100-240V AC; Output: 15V DC
Battery backup: DC12V 7Ah
Power supply rating (without charging): 35W (max)
Power supply rating (with charging): As above plus electrical load required after consulting with Traka for more details

Environmental data
Operating temp:
Ambient, for indoor use only (-5°C to +40°C / +23°F to +104°F at 95% non-condensing relative humidity)

Installation data
Mounting: Not suitable for freestanding applications. Must be securely fixed to a flat load bearing wall.

Network & connectivity data
Communications:
Ethernet (AES-256 encryption)
Reader interface options: Clock/data, Wiegand, Serial (RS232/ TTL) PIN only, OSDP Readers (RS485) with or without Encryption
Alarm interface: x3 2A/30V DC max. rated relay contacts for connecting to alarms, access control systems, CCTV, etc.

Conformity & standards data
Certifications:
UKCA (UK); CE (EU)
Quality: ISO9001
Standards: ISO14001
Information Security: ISO27001

Note: For a full list of technical specifications including weights and dimensions please refer to the product specification sheet in the Downloads section.

  • personnel-deposit-locker-us-letter(PDF, 226 KB)
  • personnel-deposit-locker-datasheet(PDF, 225 KB)
